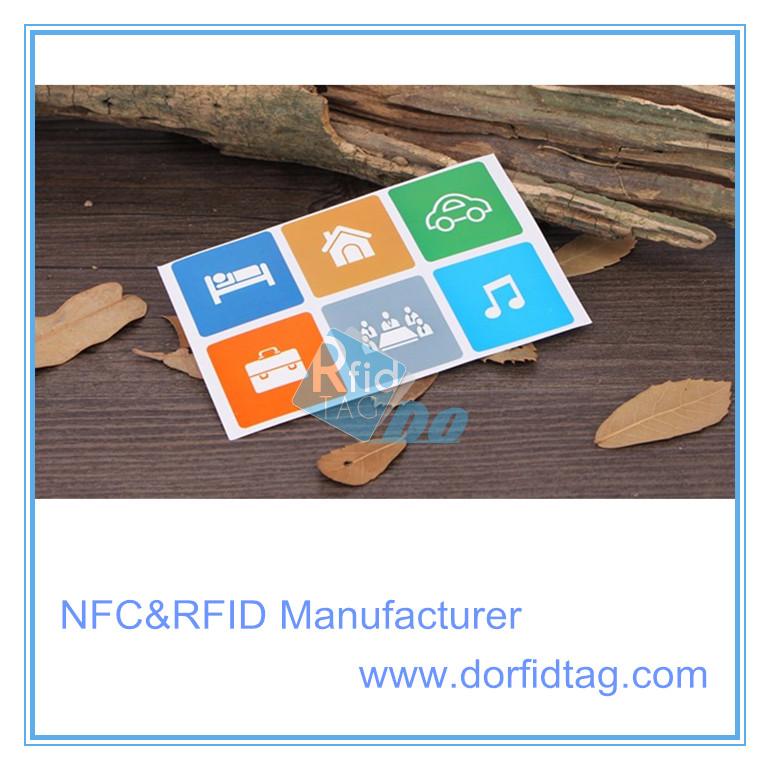

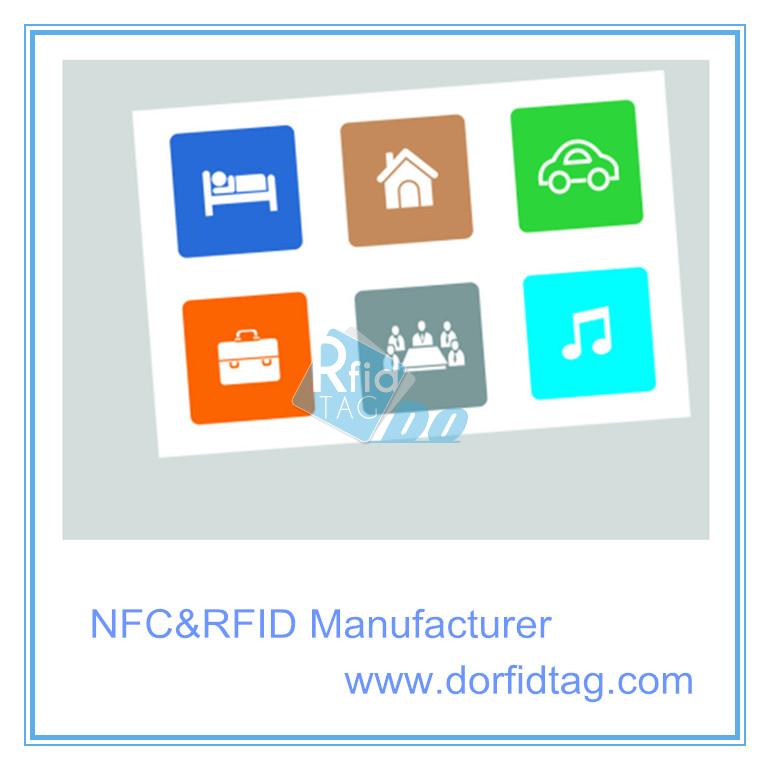

13.56MHz Printed NFC tag Ntag216

13.56MHz Printed NFC Sticker Ntag216

D.o rfid tag company produce  a wide range of NFC tags based on NFC Forum-compliant tag types 1, 2 ,4 and they are compatible with NFC applications such as Samsung TecTiles and others. NFC tags are an increasingly popular way to gain visibility and loyalty for your business with smartphone users. Our NFC tags and cards are designed to help you promote your business in the virtual world – standard tags and cards are available either blank, for application flexibility, or feature the Google NFC logo and are pre-personalized. All our NFC tags are designed to offer maximum performance for your mobile customers and easy implementation for you.

Features and benefits

• Contactless transmission of data and supply energy

• Operating frequency of 13.56 MHz

• Data transfer of 106 kbit/s

• Data integrity of 16-bit CRC, parity, bit coding, bit counting

• Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)

• 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)

• UID ASCII mirror for automatic serialization of NDEF messages

• Automatic NFC counter triggered at read command

• NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message

• ECC based originality signature

• Fast read command

• True anticollision

• 50 pF input capacitance

EEPROM:

• 180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page

• 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)c

• 4 bytes initialized capability container with one time programmable access bits

• Field programmable read-only locking function per page for the first 16 pages

• Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216

• Configurable password protection with optional limit of unsuccessful attempts

• Anti-tearing support for capability container (CC) and lock bits

• ECC supported originality check

• Data retention time of 10 years

• Write endurance 100,000 cycles

Pleaase kindly contact us for more discount .

Features and benefits

Contactless transmission of data and supply energy

Operating frequency of 13.56 MHz

Data transfer of 106 kbit/s

Data integrity of 16-bit CRC, parity, bit coding, bit counting

Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)

7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)

UID ASCII mirror for automatic serialization of NDEF messages

Automatic NFC counter triggered at read command

NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message

ECC based originality signature

Fast read command

True anticollision

50 pF input capacitance

EEPROM

180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page

144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)c

4 bytes initialized capability container with one time programmable access bits

Field programmable read-only locking function per page for the first 16 pages

Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216

Configurable password protection with optional limit of unsuccessful attempts

Anti-tearing support for capability container (CC) and lock bits

ECC supported originality check

Data retention time of 10 years

Write endurance 100,000 cycles
