D.O RFID TAG company is a RFID card manufacturers & factory, professional RFID card manufacturers , NFC tags suppliers and RFID Wristband company in shenzhen china for 15 years — Source Quality Products and Enjoy Efficient Service.

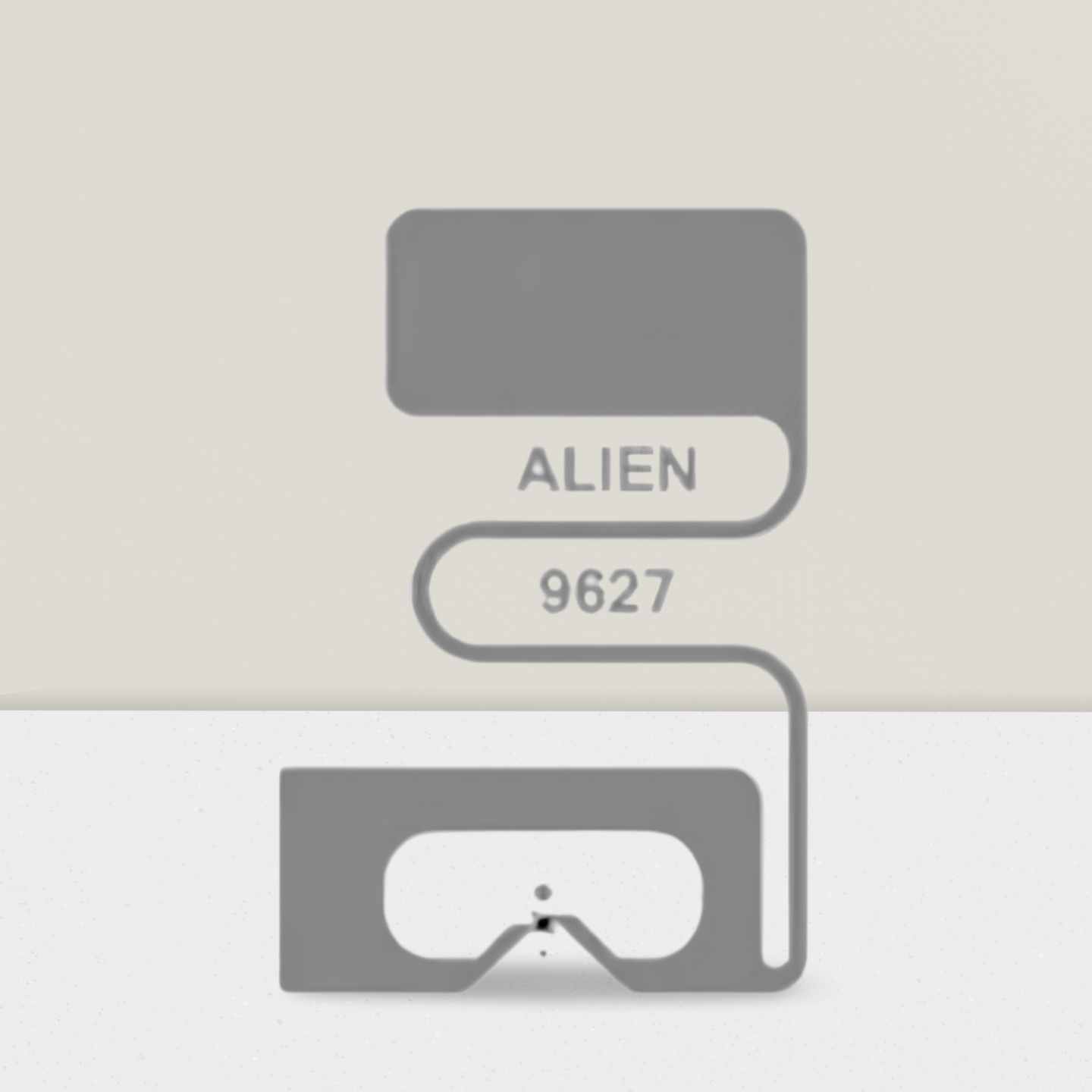

DO RFID TAG manufacture produced the Alien Higs ALN-9627 RFID label, and GEN2 RFID wet inlay or wet inlay
withAlien Higs 3 chips, they operated at 840-960 MHz .
The GEN2 Ultra-high frequency 840-960 MHz Alien ALN-9627 high performance label designed to use for
requirements like apparel, shipping labels, asset management and small package labeling environments.
These Alien Higs ALN-9627 RFID label delivers high performance with the many memory features for the
distributed data applications and provides high security with 32-bit kill password support, which prevents
from unauthorized access for the modification and viewing of data. The RoHS certified tag is embedded
with Alien Higgs 3 integrated chip including 800 bit NVRAM and write endurance of the tag is 100,000 cycles.
This tag is ideal choice for apparel, shipping labels, asset management and small package labels.
This UAlien Higs ALN-9627 RFID sticker offers exceptional performance, boasting an array of memory features
designed for various distributed data applications. It ensures heightened security through its 32-bit kill password
support, effectively thwarting unauthorized access and safeguarding data from unauthorized modification or
viewing.
Certified with RoHS compliance, this tag is equipped with the advanced Alien Higgs 3 integrated chip, which
incorporates an 800-bit NVRAM. Impressively, the tag can endure up to 100,000 write cycles, ensuring its
longevity and reliability.
Given its attributes, this tag stands as the optimal choice for a range of applications, including but not limited to
apparel, shipping labels, asset management, and small package labels.
Alien Higs ALN-9627 RFID label Key Features
Compliant with ISO18000-6C protocols
32-bit access password
32-bit Kill password
100,000 times read and write cycles
Product Property: Optional of Tamper proof, Brittle antenna, Destructive aluminum etching, Fragile copper etching, Ink of silver Printing antenna based
Product Feature: Function of Non-transfer, Fragile,Tamper Evident, Anti-counterfeiting, non-transferable,break on antenna, break on chip,one time use, Disposable, Destructive IP Level, Waterproof, UV IR rays resistant, heat or temperature resistant and chemical resistant
Alien Higs ALN-9627 RFID sticker Applications
Asset management
Shipping labels
Apparel, hang tags
Small package labels
Corrugate cases
File folder labels
Technical Specifications
| RF Specifications | |
| Protocols | EPC Gen 2 ISO 18000-6C compliant |
| Operating Frequency | 840-960 MHz |
| IC chip | Alien Higgs-3 with 800 bit NVRAM |
| Memory | EPC 96 bit, User 512 bit, TID 32 bit |
| Access Password | 32 bit |
| Kill Password | 32 bit |
| Mechanical Specifications | |
| Core Material | Conduct Material: Aluminum Etching / 9um thickness (Copper/Silver conduct is option) Substrate: PET of 50um thickness |
| Dimensions | 1.8 in × 1.3 in (45 mm × 33 mm) |
| Environmental Specifications | |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | -13 °F to 122 °F (-25 °C to 50 °C) |
| Certification | RoHS |
| Data read and write | 100,000 times |
