D.O RFID TAG company
D.O RFID TAG company is a RFID card manufacturers & factory, professional RFID card manufacturers , NFC tags suppliers and RFID Wristband company in shenzhen china for 15 years — Source Quality Products and Enjoy Efficient Service.

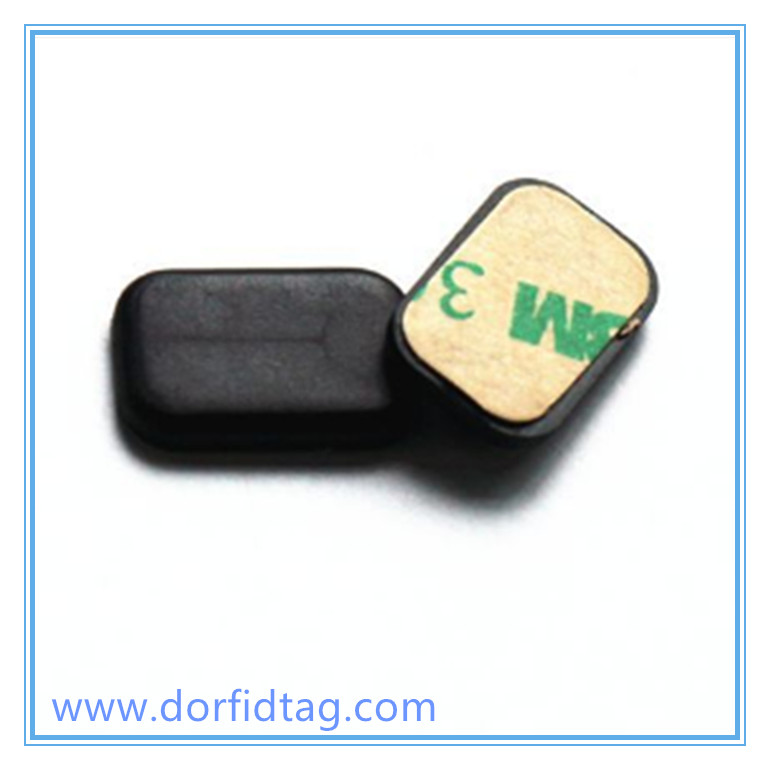

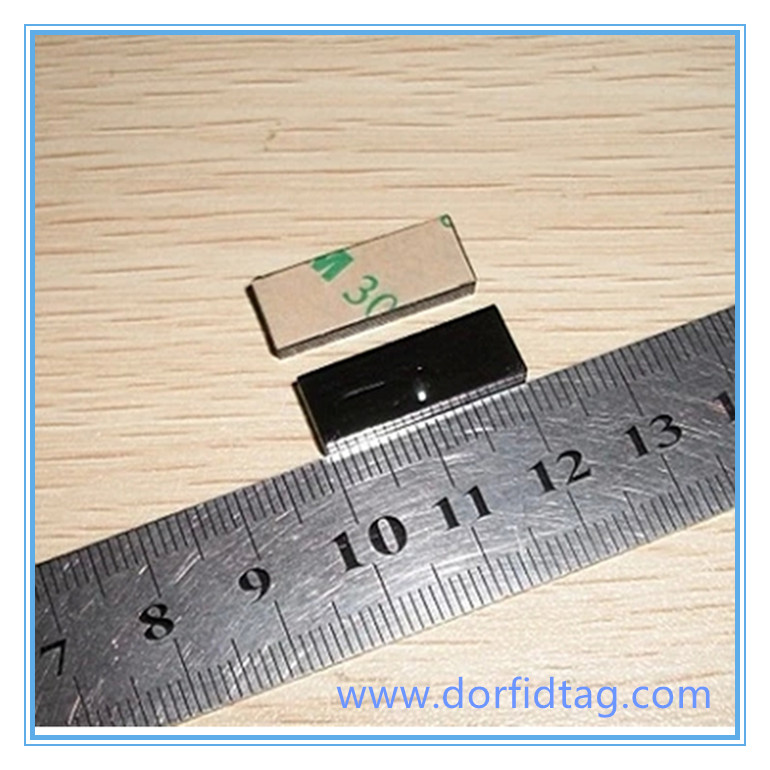

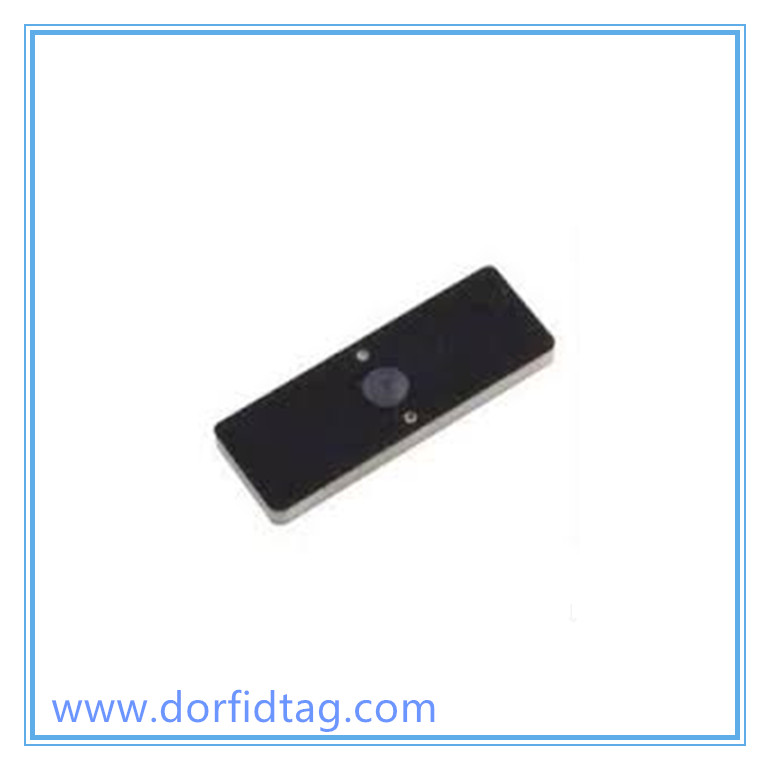

High temperature RFID Rugged Metal Tags

Material
ABS
RFID Standard
ISO186000
RFID Frequency
860-960MHZ
Color
black

D.O RFID TAG's RFID rugged UHF RFID tags are specifically designed to be the smallest and most rugged RFID-on-metal tags in the world for industrial markets where critical and potentially hazardous situations require reliable identification of assets. D.O RFID TAG’s patented RF antenna design provides an unrivaled performance-to-size ratio, reducing tag size and allowing customers to attach RFID tags to small metallic assets that have been too challenging to track .

D.O RFID TAG's RFID rugged UHF RFID tags are specifically designed to be the smallest and most rugged RFID-on-metal tags in the world for industrial markets where critical and potentially hazardous situations require reliable identification of assets. D.O RFID TAG’s patented RF antenna design provides an unrivaled performance-to-size ratio, reducing tag size and allowing customers to attach RFID tags to small metallic assets that have been too challenging to track .

D.O RFID tag family is about creating the toughest ultra-high frequency (UHF) tag on the market inthe smallest form factor tag (the size of a dime) but with the read distance of a school bus in length. Our tags can be use for the extreme applications.They With a temperature resistance of up to +250oC, these tags may be used in applications involving extreme heat (autoclave, painting, high heat metal form casting, construction etc.) without damage and sacrificing performance. Also for extreme cleaning regimens involving high temperature water baths and often solvents and acids

Number

size (mm)

Chip position (thickness)

Read distance
(1W, 30db, Handheld,air)

Weight(g)

Note

DOP606

6*6*2.5mm

3.5mm

15cm

0.2

without hole and glue

DOP307

3*7*2mm

3mm

15cm

0.2

without hole and glue

DOP105

10*5*2.5mm

3.5mm

25cm

0.3

without hole and glue

DOP103

10*3.5*1.3mm

2mm

15cm

0.3

without hole and glue

DOP10

D10mm*2mm

2.9mm

30cm

0.4

with  glue

DOP14

D14mm*3mm

3.5mm

40cm

0.8

with  glue

DOP16

D16mm*2.5nn

3.5mm

60cm

1.1

with  glue

DOP1207

12.5*7.5*2.5mm

3.5mm

35cm

0.6

with  glue

DOP1504

15*4*2.5mm

3.5mm

50cm

0.8

with  glue

DOP1808

18*8*2.5mm

3.5mm

50cm

1.0

with  glue

DOP1813

18*13*2.5mm

3.5mm

70cm

1.3

with  glue

DOP2208

22*8*2.5mm

3.5mm

80cm

1.1

with  glue

DOP2509

25*9*2.5mm

3.5mm

100cm

1.4

with  glue

DOP2510

25*10*1.5mm

2.5mm

120cm

1.4

with  glue

DOP2525

25*25*3mm

3.5mm

130cm

3.0

with  glue

DOP3005

30*5*1mm

2.5mm

30cm

1.0

with  glue

DOP3009

30*9*3mm

3.5mm

120cm

2.1

with  glue

DOP3232

32*32*3mm

3.5mm

150cm

3.5

with  glue

DOP3310

33*10*3mm

3.5mm

125cm

2.3

with  glue

DOP3613

36*13*2.5mm

3.5mm

130cm

3.0

with  glue

                    DO4010

40*10*2.5mm

3.5mm

150cm

4.0

with hole and glue

DOP5025

50*25*1mm

2.5mm

100cm

3.5

with hole and glue

DOP5213

52*13*2.5mm

3.5mm

250cm

5.0

with hole and glue

DOP5233

52*33*2.5mm

3.3mm

280cm

8.0

with hole and glue

DOP6030

60*30*2.5mm

3.3mm

300cm

9.0

with hole and glue

DOP7020

70*20*3mm

3.5mm

350cm

10.0

with hole and glue

DOP8006

80*6*2.5mm

3.3mm

160cm

3.0

with hole and glue

DO8010

80*10*1.6mm

2.5mm

130cm

3.0

with hole and glue

DOP8020

80*20*2.5mm

3.5mm

400cm

12.0

with hole and glue

DOP9011

90*11*3mm

3.5mm

350cm

15.0

with hole and glue

DOP9525

95*25*2.5mm

3.5mm

500cm

16.5

with hole and glue





High Temperature RFID Resistant Tags

Heat Resistant RFID tags

High Temperature and Acid Alkali Resistant RFID Tags

High Temperature Rugged Metal RFID Tags

260 degrees Celsius RFID High Temperature Tags

260 degrees Celsius High-Temperature RFID Screw Tag

high temperature rfid tag Heat resistant rfid tags
