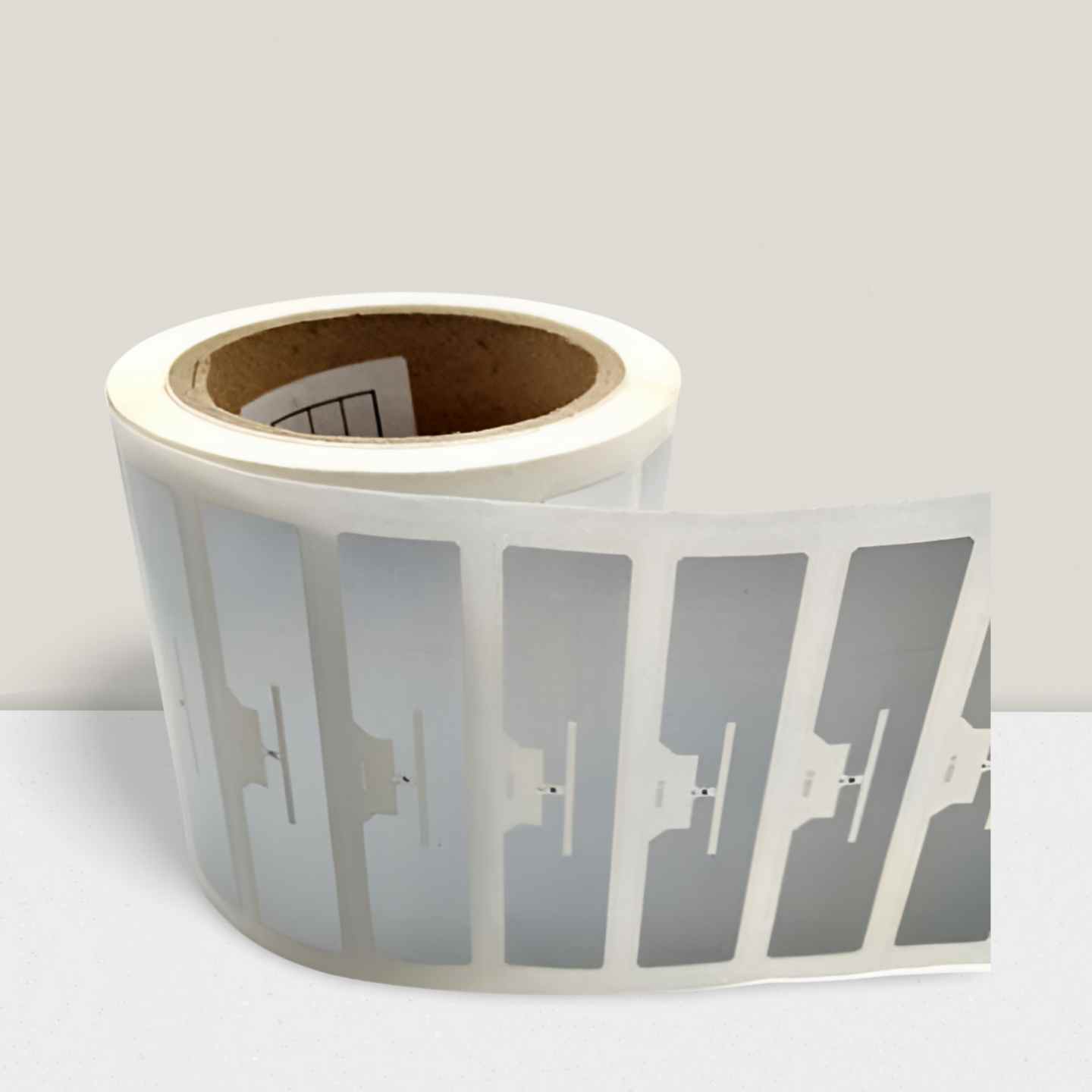

The ALN-G tag Higs ALN-9654 RFID label from Alien Technology is a high-performance, general-purpose RFID inlay that is particularly well-suited for use in high-dielectric materials such as windshields and reusable plastic pallets or containers. It is equipped with the Alien Higgs chip, which features EPC memory, user memory, and TID memory. The user memory offers permanent locking functionality and allows for setting a password to enhance security and effectively control access. The tag has dimensions of 106 x 24.40 mm and operates in the UHF frequency range of 840 to 960 MHz. It is available in both dry inlay and wet inlay formats which allows it to adhere to a wide variety of surfaces.
ALN-G tag Higs ALN-9654 RFID tag Features
Exceptional performance.
EPC Gen 2 (v1.2.0) compliant.
ISO/IEC 18000-6C compliant.
Worldwide RFID UHF operation (840-960MHz).
Higgs-3 IC with 800-bits of Nonvolatile Memory.
Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication).
User Memory can be Block Perma-Locked.
User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password.
Supports all Mandatory and Optional Gen 2 commands including item level
Custom commands for high speed programming.
Available in high-yield, high-capacity dry/wet inlay rolls for high volume converting processes.
technical Specifications
| RF Specifications | |
| Protocols | EPC Gen 2 ISO 18000-6C compliant |
| Operating Frequency | 840-960 MHz |
| IC chip | Alien Higgs-3 |
| Memory | EPC 96 bit, User 512 bit, TID 64 bit |
| Access Password | 32 bit |
| Kill Password | 32 bit |
| Mechanical Specifications | |
| Core Material | Conduct Material: Aluminum Etching / 9um thickness (Copper/Silver conduct is option) Substrate: PET of 50um thickness |
| Dimensions | 106mm x 25mm - 4.17in x 0.98in |
| Environmental Specifications | |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | -13 °F to 122 °F (-25 °C to 50 °C) |
| Certification | RoHS |
| Data read and write | 100,000 times |
| Max Read Distance: | > 6 m (10 ft) |
