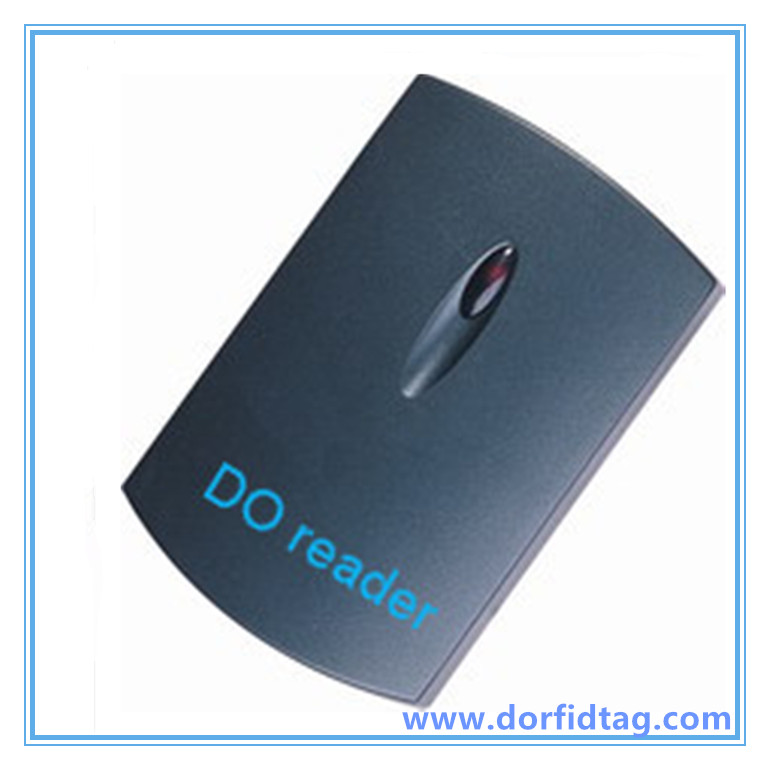

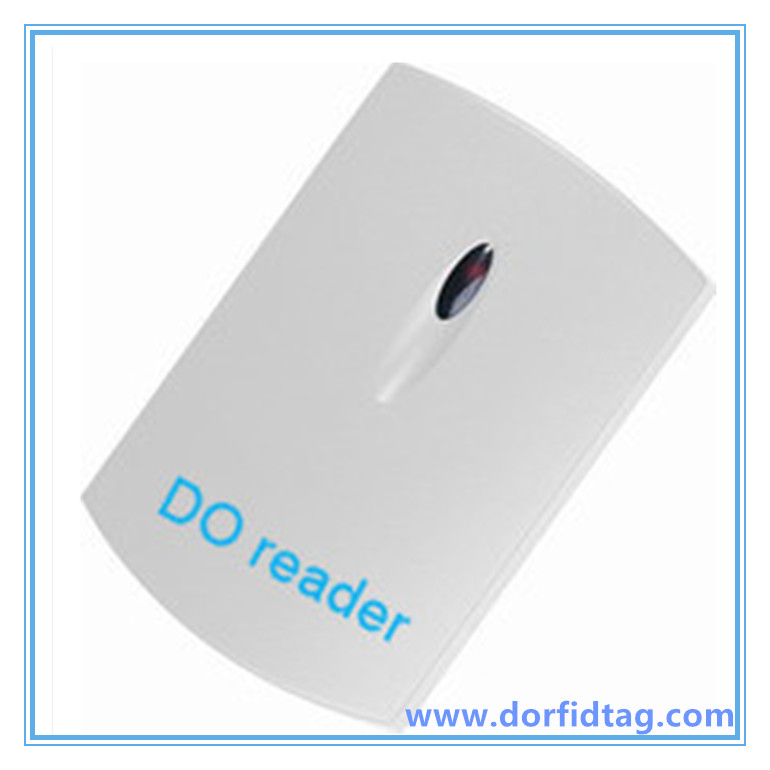

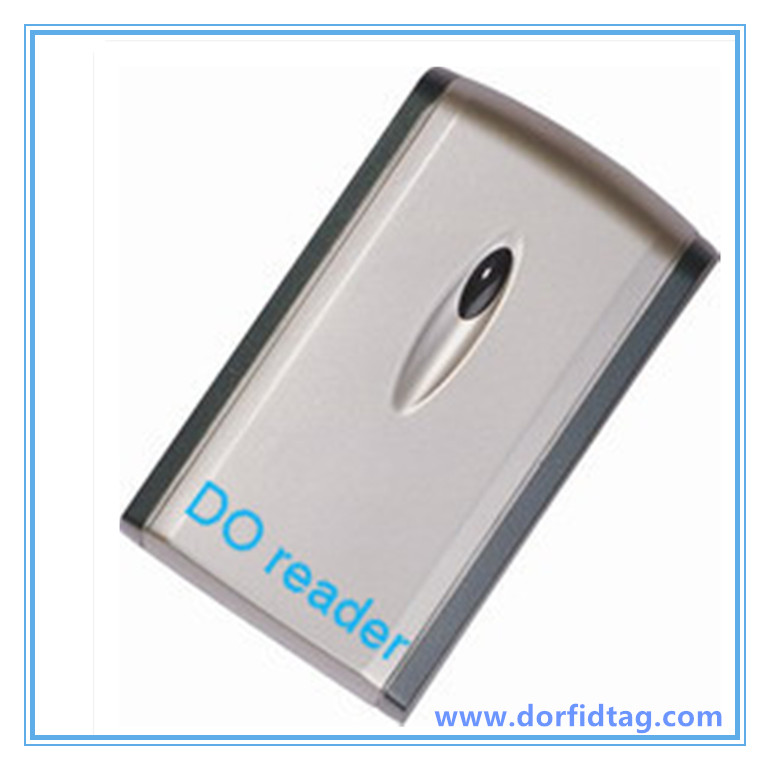

Low Cost Long Range 13.56 MHz RS232 RS485 RFID Card Reader

This Reader is a read only reader for access control, it can be 125KHz or 13.56MHz as your demand, output format can be Weigand 26/34; RS232; RS485 , popular used in enterprises access control management, housing management etc.

This Reader is a read only reader for access control, it can be 125KHz or 13.56MHz as your demand, output format can be Weigand 26/34; RS232; RS485 , popular used in enterprises access control management, housing management etc.

Specification:

Model No. :DO-11

Demension:118*76*23(mm)

Operation current: DC9~16V

Interface:Wiegand 26/34,RS485

card avialable :EM/Mifare/Disfare/ISO15693/TYPE A B C

Operation temperature:-10℃~70℃

Reader distance:3-15cm

Color :Dark grey,white


Cable function:




• Red: Power 12V positive wire
• Black: Power ground
• Green: WGDATA0/TXD/R+
• White: WGDATA1/RXD/R-
• Blue: LED
• Yellow: BUZZ
• Grey: WG26/34 switchover



 Applications

  •  Identification

  • Access control, pc access

  • Offline ticketing

  • Customizing cards

  • Payment

Welcome to contact us for more details, we can custom any RFID card reader/writer as your request.
