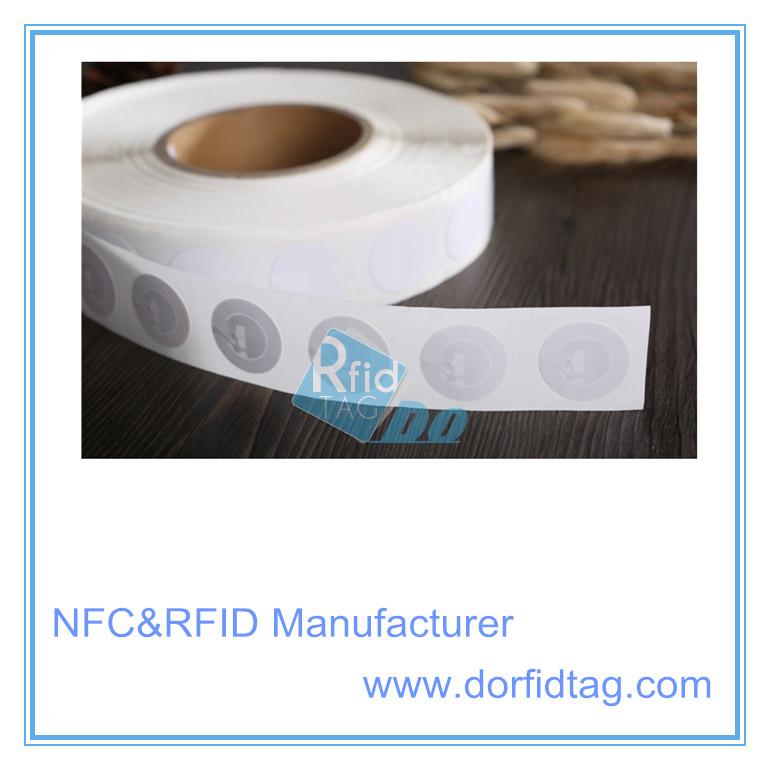

Mifare Ultralight Chip NFC Tag Printed in Roll

Mifare Ultralight Chip NFC Tag Printed in Roll
Mifare Ultralight Chip NFC Tag Printed in Roll
Mifare Ultralight Chip NFC Tag Printed in Roll
Mifare Ultralight Chip NFC Tag Printed in Roll
Mifare Ultralight Chip NFC Tag Printed in Roll

Mifare Ultralight Chip NFC Tag Printed in Roll

MFUltralight NFC chips are basic and cheap chips as they are able to store a small amount of data such as one short URL or an ID. Thus, this type of NFC chip is particularly adapted to projects requiring a high volume of tag for a low cost, or for projects like identification systems which require small storage capacities.

Mifare Ultralight Chip NFC Tag Printed in Roll

Mifare Ultralight  NFC chips are basic and cheap chips as they are able to store a small amount of data such as one short URL or an ID. Thus, this type of NFC chip is particularly adapted to projects requiring a high volume of tag for a low cost, or for projects like identification systems which require small storage capacities.

NFC Chip

Mifare Ultralight

Mifare Ultralight  NFCtag Memory

64bytes

Mifare Ultralight  NFCtag Frequency

13.56MHZ

Mifare Ultralight  NFCtag Material

PVC, PET ,Paper

Mifare Ultralight  NFCtag Antenna Size

32x32 mm / 1.26x1.26〃

Mifare Ultralight  NFCtag Die-cut Size

35x35mm /1.38x1.38〃

Mifare Ultralight  NFCtag other sizes for opption

Round Shape:Ø20mm/25mm/29mm/30mm/35mm/38mm/40mm/50mm

Square Shape:18x18mm/20x20mm/25x25mm/30x30mm/40x40mm/45x45mm/50x50mm

Rectangle Shape:12x20MM/15X20MM/15X30MM/20X40MM/25X40mm/ 25X38mm/18x56MM/54x86MM

Mifare Ultralight  NFCtag Operating Temperature

-25°C to 70°C / -13°F to 158°F

Mifare Ultralight  NFCtag technology

Number /QR Code / UID Priting ,Data encoding ,Anti-Metal

Epoxy Surface etc

Mifare Ultralight  NFCtag Adhesive

Acrylic, water borne adhesive

Mifare Ultralight  NFCtag Adhesive Usage Temperature

min. -20°C to 80°C / min. -4°F to 176°F

Mifare Ultralight  NFCtag Qty/Roll

Mini 1000pcs per Roll

Mifare Ultralight  NFCtag Core Size

76 mm / 3“

Shelf Life: minimum of 2 years from the date of manufacture in

20°C / 68°F, 50% RH



Q1. How to get faster feedback from us?

1. We will reply your email within 12 hours.



Q2. Need a sample?

1. Samples without printing is free.

2. If you need printed samples with sophisticated printing, a -0 printing fee is required.

3. All the freight cost will be charged. PS: The sample delivery time is about 5-7 days.



Q3. What material and glue of RFID tag we have?

Our Inlay are covered in the surface material to form the final label. These are some materials:

1. Coated Paper: Low cost, easy to print on.

2. PET: Waterproof, heatproof, environmental protection.

3. PVC: Waterproof, corrosion resistance, high-temperature resistance.

4. Normal Double-sided adhesive: Robust, widely used, and cheaper than 3M Glue.

5. 3M Glue: Higher cost but strong viscosity, good temperature tolerance & anti-corrosion.

6. Electrostatic adhesive:Electrostatic prevention, high temperature resistance, strong water resistance



Q4. What chip should I use? And Inlay?

We have LF, HF and UHF chips with various memory and reading distance. If you are not sure, please inform our sales with project details.

Here are some commonly used chips and inlays for your reference:

1. LF (0-5cm): TK4100 (64 Bit), HitagS256 (256 Bit), EM4305 (512 Bit).

2. HF (0-15cm): Ntag213 (144 Byte), F08 (1K Byte), I CODE SLIX (128 Byte).

3. UHF (1-10m): AlienH3 (96 Bit), Alien H4 (96 Bit), Monza 4D ( 128 Bit).

4. Inlay: AlienH3 9654, AlienH4 9762, Impinj M4QT, Impinj M4E.

Chips are then mounted on different inlays (Antenna etched on PET layer) for achieving different reading distance and angles. Our sales will provide you the most suited inlay if not specified.



Q5. What the data can I encode to each Tag?

We can encode different serial numbers, URL/website, Text to each Tag as your request.
