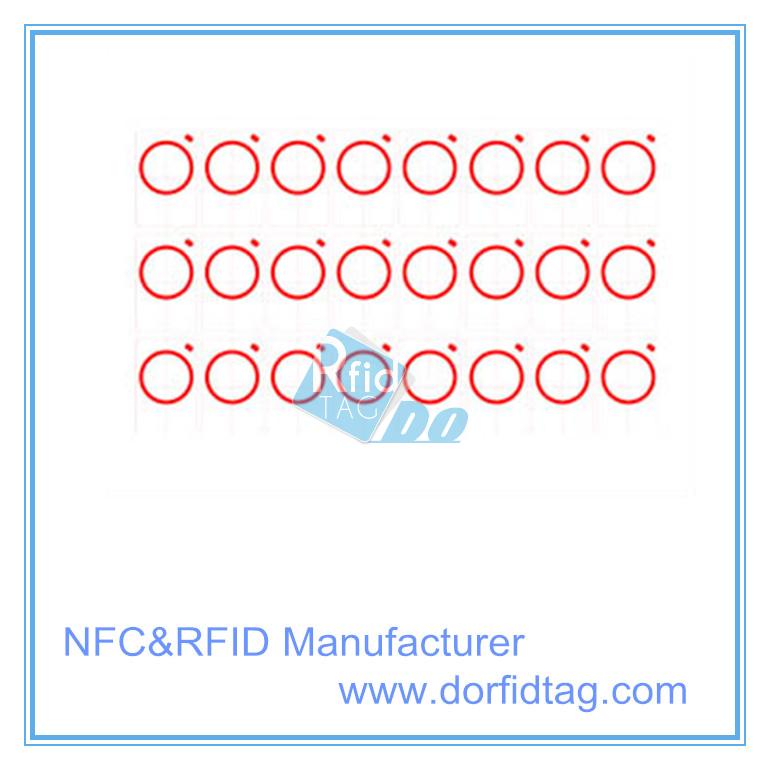

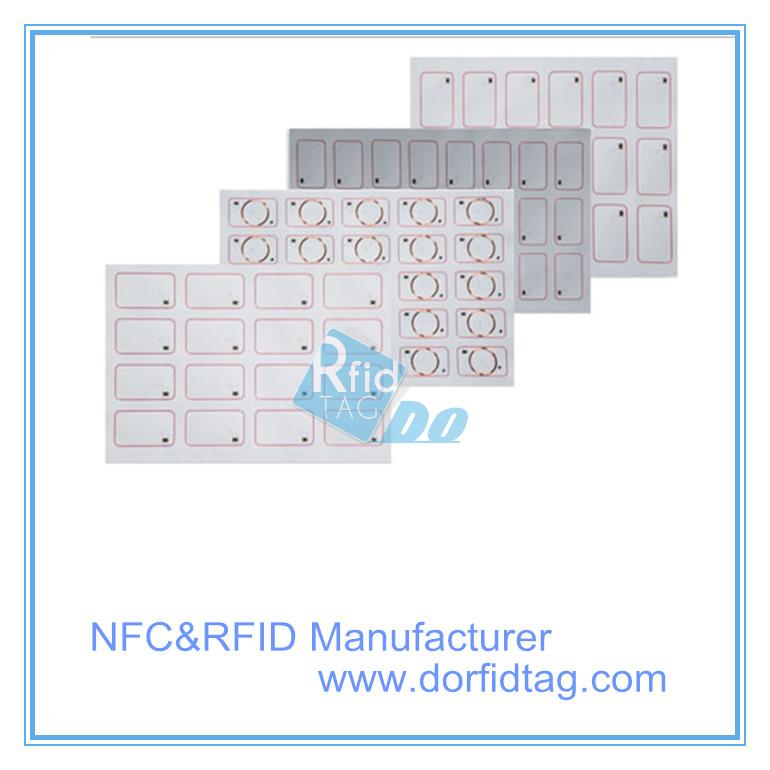

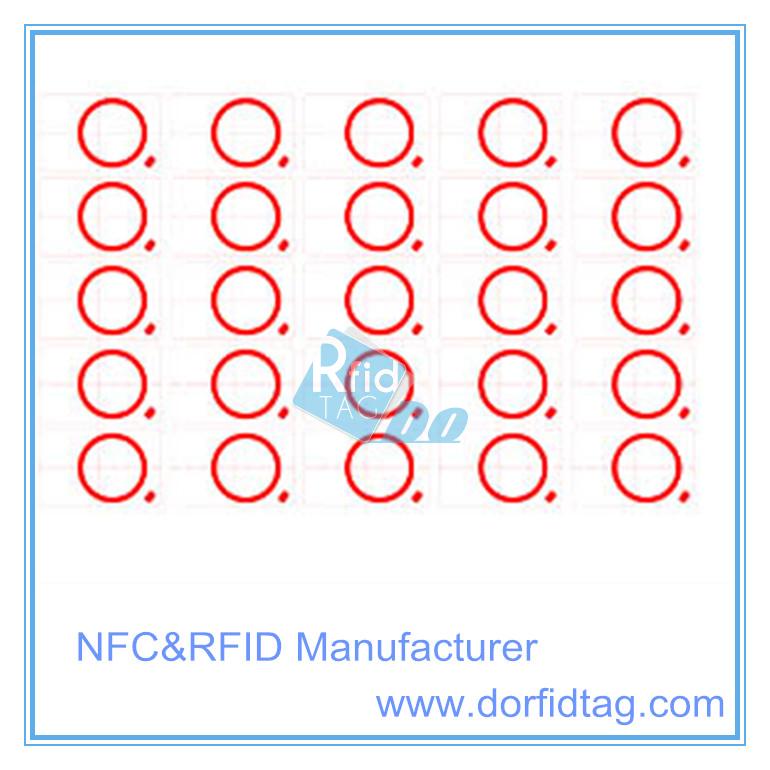

Proximity RFID 125KHz TK4100 Inlay prelam Sheet For Low Frequency ID Card

Proximity RFID 125KHz TK4100 Inlay Sheet For Low Frequency ID Card

125KHz RFID card inlay/card prelam, made of PVC/PET material, with about 0.5mm thickness, widely used for ISO card making.

The prelam can be made of material PVC ,PET, etc. We could develop any size and shape of antenna that can be adapted to the specific requirements of the customer. Reliability, durability and prefect electrical performance, compliant with divers standards. D.O RFID TAG Manufacturer's Inlay is ideal semi-products for laminating contactless card, tag applications such as automated fare collection, access control, ePayment and identification.

Item Specification:

Operating Frequency : LF 125KHz;

 Material: PVC,

PET Dimension: 305mm x 460mm, Max. size 500mm x400mm, A4 210mm x297 Layout 3×7, 5×5,3×8,4×8,4×6, 2×5,2×4, or any Customization of CR80 card or any unit antenna size Thickness: LF normal 0.6mm Antenna LF: Pre-winding Copper Coli,

LF: Wire Bonding,

Read range more than 50mm with our reader

Working temperature -25°C ~ +55°C Store temperature -25°C ~ +65°C
