RFID OEM Reader Module mifare desfire ev1 reader

RFID OEM Reader Module mifare desfire ev1 reader
RFID OEM Reader Module mifare desfire ev1 reader
RFID OEM Reader Module mifare desfire ev1 reader
RFID OEM Reader Module mifare desfire ev1 reader
RFID OEM Reader Module mifare desfire ev1 reader

RFID OEM Reader Module mifare desfire ev1 reader

D.O RFID Group's mifare desfire ev1 Reader Module allows integrators to design third party solutions supporting a full range of contactless card technologies

D.O RFID Group has rich experience for design and produce various RFID reader writer. This DesFire EV1 CPU reader writer module can perform 7-byte serial number reading, card initialization and recovery, file data reading and writing, and file key modification operations on the CPU card.
     After the card is initialized, 4 files are automatically established. Each file has 4 blocks. The fixed size of each block is 32 bytes, that is, the number of bytes that can be used per CPU card is 4*4*32=512 bytes.

D.O RFID Group's mifare desfire ev1 Reader Module allows integrators to design third party solutions supporting a full range of contactless card technologies
During development, special attention was paid to compact dimensions and technical flexibility.designed for system integrators, it is easy to use for OEM's and solution providers who wish to integrate contactless reading capability into their products.
mifare desfire ev1 Reader Module support mifare desfire ev1 2k mifare desfire ev1 4k,mifare desfire ev1 8k

The mifare desfire ev1 Reader Module DTK provides everything necessary to develop contactless solutions as following:

Development board hardware, cables and antennas for HF  applications
mifare desfire ev1 Reader Module
Supporting documentation & sample code for host integration
Sample cards


 Features
◇ Multifunction, DesFire EV1 CPU module support Reader and Write
◇ Easy to use, easy development.After the DesFire EV1 CPU card initialized, the card catalog and key can be pre-established automatically. Developers do not need to know any card technology of DesFire EV1 CPU card,but only need to call very simple instructions and complete product development within 15 minutes.
◇ Security, DesFire EV1 CPU module have Key Management System


Smart Card Interface
Standard       ISO/IEC14443A
UID         7 Byte UID
Frequency/ Technology     13.56Mhz
Supporting Card Category     NXP Mifare DesFire EV1 D21
NXP Mifare DesFire EV1 D41
NXP Mifare DesFire EV1 D81



Operating Voltage     3.3V-5.5V
Supply current       45mA
Physical Specifications

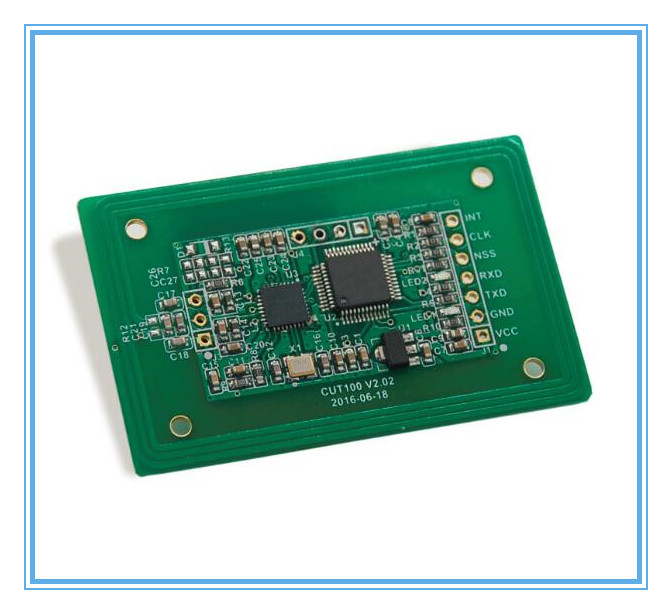

Dimensions       56*36*3mm(Intergrated)

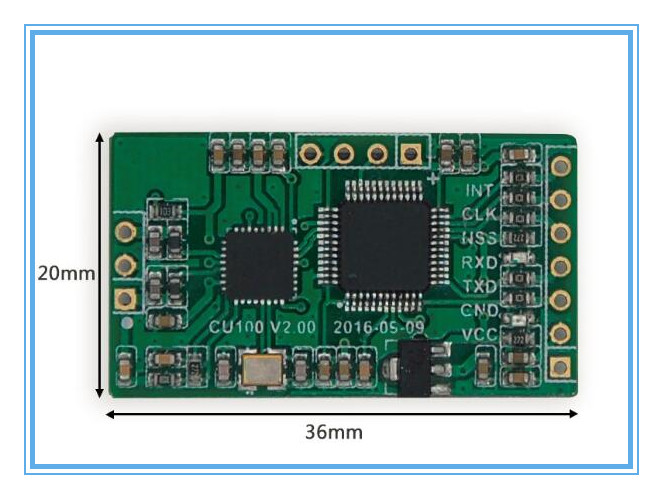

36*20*3mm(Split)
Baud rate       19200bps
Communication interface     UART(expansion RS232, RS485) Wiegand
Output control board     control LED or buzzer
Operating Conditions
Temperature       -20 oC to +70 oC
Humidity       10~90%RH
Read speed       40-60mm

Certifications/Compliance
RosH
