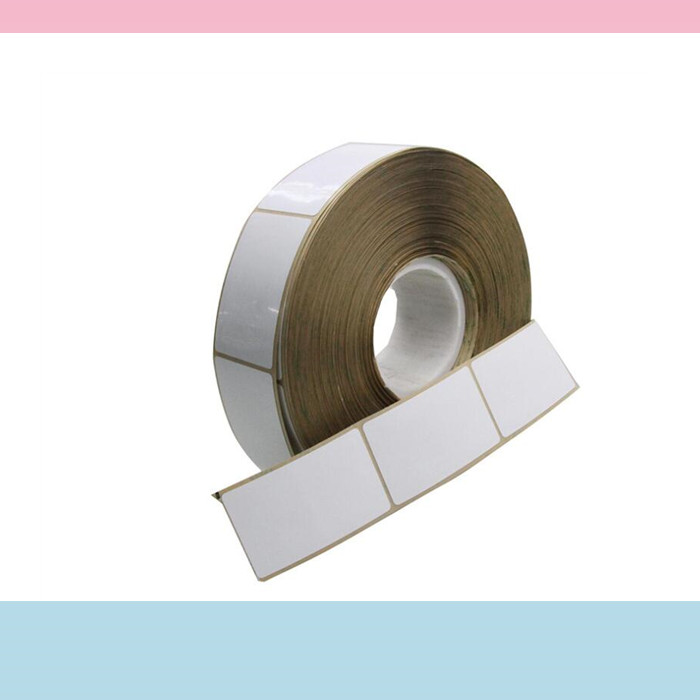

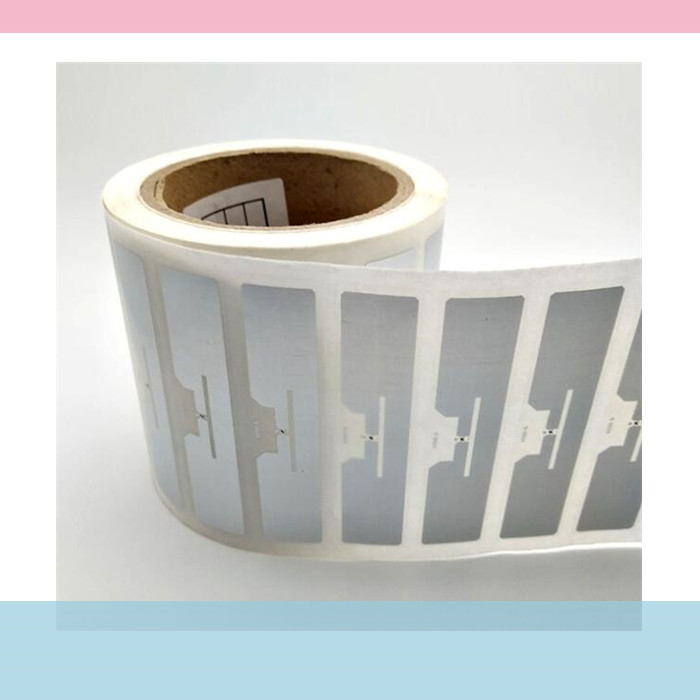

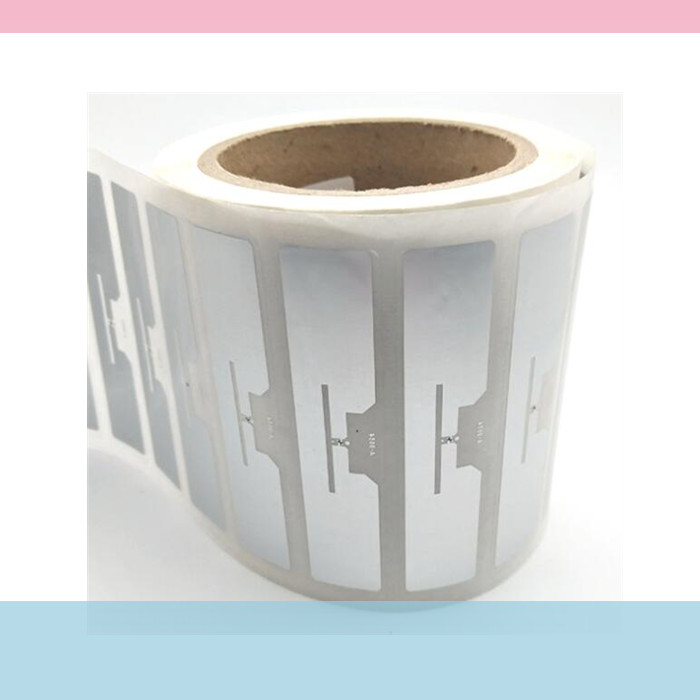

RFID Vehicle Tags

Size
Customize
Material
paper
RFID Standard
ISO18000-6C
RFID Frequency
860-960MHZ
Color
white

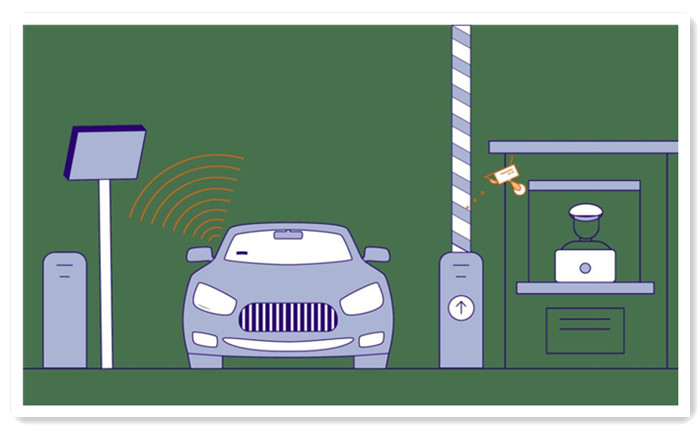

RFID Vehicle Tags provide a more precise and secure method of gaining access to a gated neighborhood, company/corporate guarded parking, or even a car wash. The passive RFID tags are covered in a hardshell or encapsulated between thin layers of polypropylene with human readable printing on one side and a windshield-compatible adhesive on the other. A destructible variant is also available, with deliberately placed slits in the label and adhesive layers.


RFID Vehicle Tags provide a more precise and secure method of gaining access to a gated neighborhood, company/corporate guarded parking, or even a car wash. The passive RFID tags are covered in a hardshell or encapsulated between thin layers of polypropylene with human readable printing on one side and a windshield-compatible adhesive on the other. A destructible variant is also available, with deliberately placed slits in the label and adhesive layers.


The automobile RFID tag, a flagship effort of the Ministry of Road Transport and Highways (MoRTH) for implementing electronic toll collection across national highways, is based on radio frequency identification (RFID) technology. It aims to ensure cashless transactions at toll plazas, resulting in near-constant traffic flow and, as a result, decongesting and streamlining the entire toll collection process.

An Electronic Produce Code (EPC) is used by the car RFID tag to individually identify each vehicle. On a global scale, this code is distinct from the vehicle's registration number and is unique to it. Each EPC code, which is a 13-digit number, in the RFID car tags is provided by GS1, a standards organization that ensures that each code is unique and in accordance with global standards in order to ensure accurate product identification. Which is a vehicle in the case of RFID vehicle tags. To ensure that the data contained therein is not interpreted differently at different levels, the code must be standardized.

Unlike barcoding, which employs a pattern of black bars and white spaces to encode information, an automobile RFID tag uses a small electronic chip surrounded by an antenna to do the same. In addition, unlike a barcode, an automobile RFID tag does not need to be in close proximity to the scanner or even in its line of sight. All that is required is to be within reading distance of the RFID reader.

How quickly can a car with an RFID tag pass by RFID equipment and still be read? This varies depending on the application, the location, and the type of vehicle RFID reader utilized. Tolling applications have been reported to be capable of reading cars traveling at speeds of more than 60 miles per hour.

What is the normal RFID vehicle tracking read range? The average read range of rfid vehicle tags and rfid windshield labels is roughly 10 – 20 feet, although the range varies greatly depending on the RFID tag used.

To avoid stray reads from other vehicles in the neighborhood, some applications may require narrower read ranges. Too much read range could be problematic in applications like access control and vehicle identification since other automobiles could open a gate for non-authorized vehicles or the wrong vehicle could be identified. To acquire a well-structured read zone, choose a car rfid tag with an average read range and then modify the vehicle rfid reader transmit power.

What should I think about if my application is going to be used outside? Because most vehicle tracking applications will be used outside, the readers and antenna(s) must have an IP68 or IP69 classification. If the car RFID reader isn't weatherproof, it can be protected with a weatherproof enclosure.

We are constantly updating and adding RFID items to our website; nevertheless, if you are looking for a certain RFID Vehicle Tag and are unable to locate it, please contact us as we are likely to be able to assist you.


If you want to ask anything just fill in the form below and send us. We will contact you within 12 hours.
