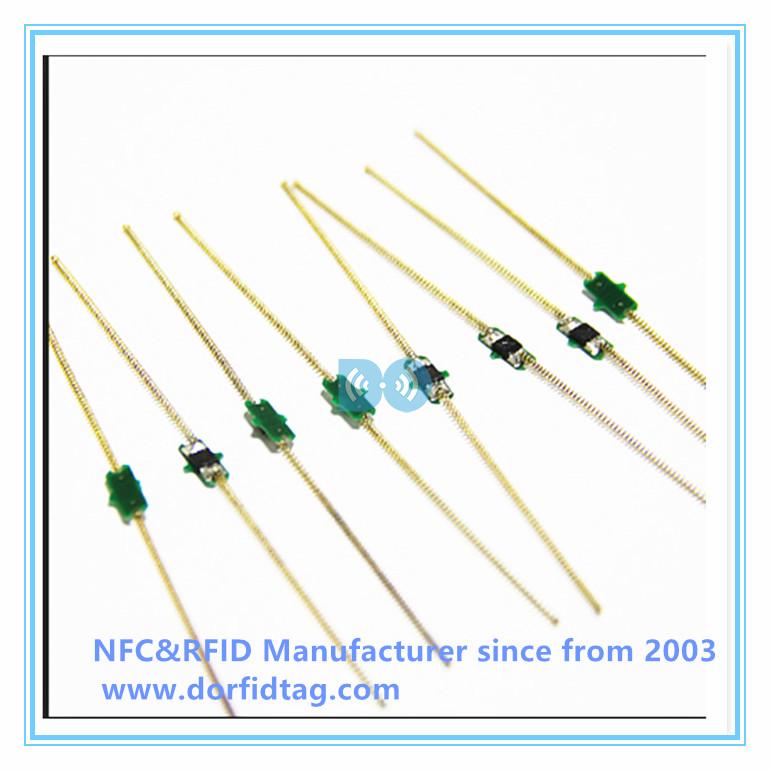

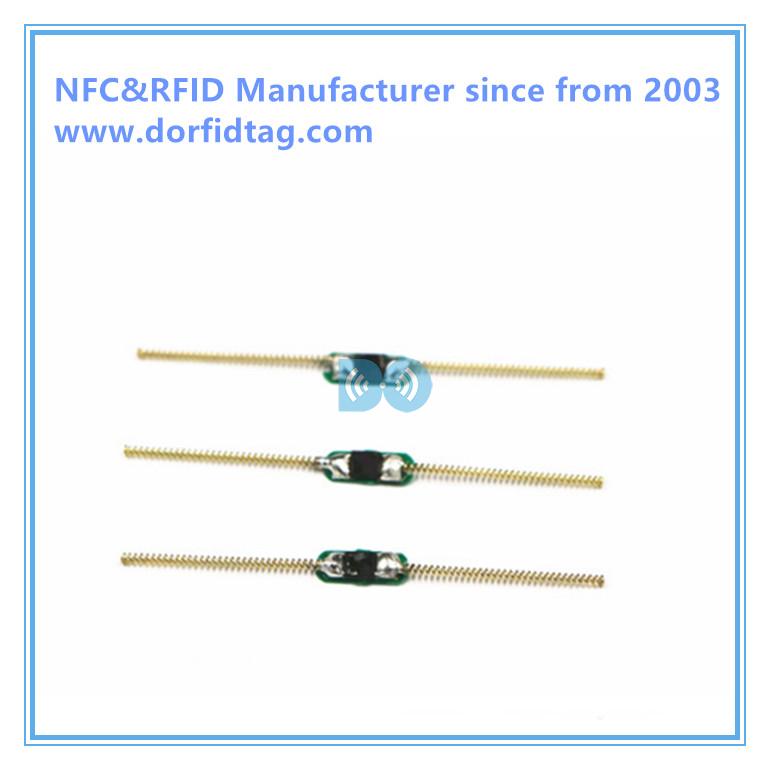

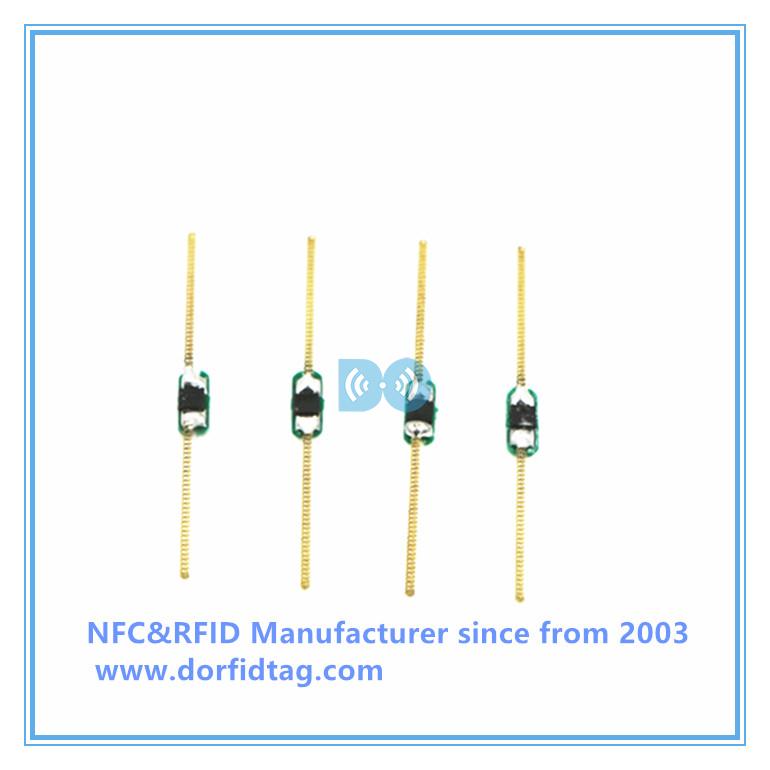

UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management

UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management
UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management
UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management
UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management
UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management

UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management

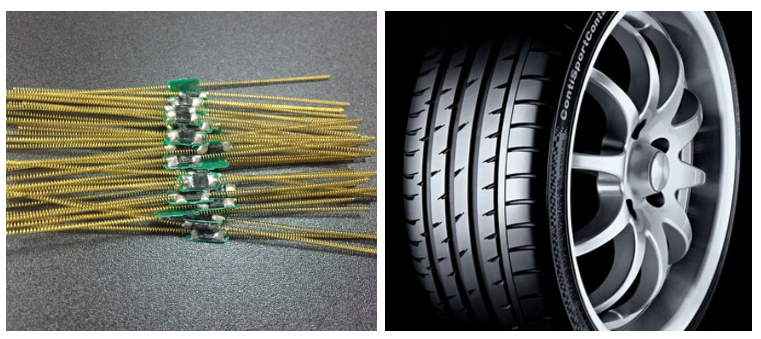

D.O RFID TAG Manufacturer has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire.
The tag provides a unique identification number which can be tracked to prevent tire theft and cloning, in addition to the conventional asset tracking benefits inherent to RFID.
This tag can be embedded other items . Such as trunk,box,etc,Its advantage is small size,resist at least 200℃,etc.

UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management

D.O RFID TAG Manufacturer has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire.

The tag provides a unique identification number which can be tracked to prevent tire theft and cloning, in addition to the conventional asset tracking benefits inherent to RFID.This tag can be embedded other items . Such as trunk,box,etc,Its advantage is small size,resist at least 200℃,etc.

Feature:

860-960 MHz frequency range for worldwide application.

survives the high temperatures encountered in the tire retreading process and is sturdy enough to remain operational throughout the operating life of the tire.

 0~2m read range when mounted on the tire .

 Flexible construction to withstand tire deformation in the total lifetime of the tire.

 Mounted on the inner side-wall of the tire.

 Tag protocol is EPC class 1 generation 2, with 96bits EPC and 512bits user memory.

 Can read and write data into tag’s user memory bank.

 The factory programmed tag identification number is unique to prevent cloning.

The tag has finished thousands of kilometers actual road test, did not lead to potential tire defects.



Specification:

Material

Metal Spring

Dimensions

90x1mm

Working temperature

-40°C~230°C

Protocol

EPC C1G2 (ISO18000-6C)

Frequency

860~960MHz

Chip

Alien Higgs-3

EPC memory

96 bits, max 480 bits

User memory

512 bits

Read range

0.5~1.5m(depend on the reader power)

ROHS compliant

Yes

Data storage

>10 years

Re-write

100,000 times

Fixture

Embedded



FAQ:

1.  What about the warranty period

Two years without natural and man-made damage. We guarantee no worries for the after sale.



2. What about the delivery time?

Once we got payment or deposit, 5-7 working days for producing 1000-80000 pcs tags.



3. What about the sample testing?

Free Sample (Existing sample) for testing before client place full order.



4. what is your company ?

We are the one of the biggest manufacturer of RFID tags/NFC tags/PVC cards in China over 14 years.

We are looking for long terms cooperation access control and security systems wholesalers, resellers, importers, agents worldwide!



UHF 860Mhz-960Mhz RFID Tire Tag for Vehicle Management :

Tire factory control,

Tire asset tracking,

Automobile factory tire tracking,

Logistic vehicle management, etc.
