UHF RFID Tire Tag for Tire Tracking/Vehicle Access Control

UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control
UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control
UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control
UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control
UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control

UHF RFID Tire Tag for Tire Tracking/Vehicle Access Control

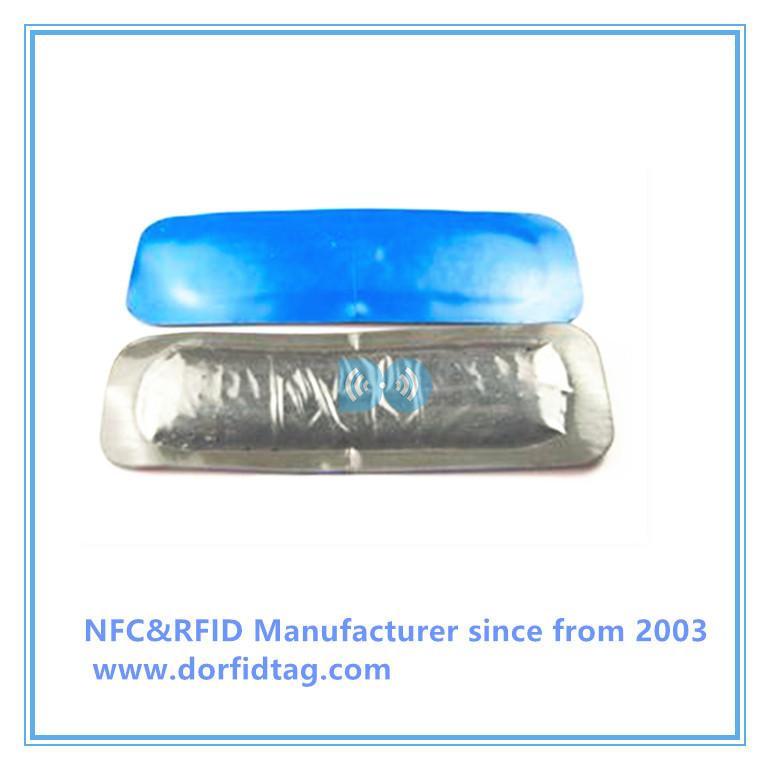

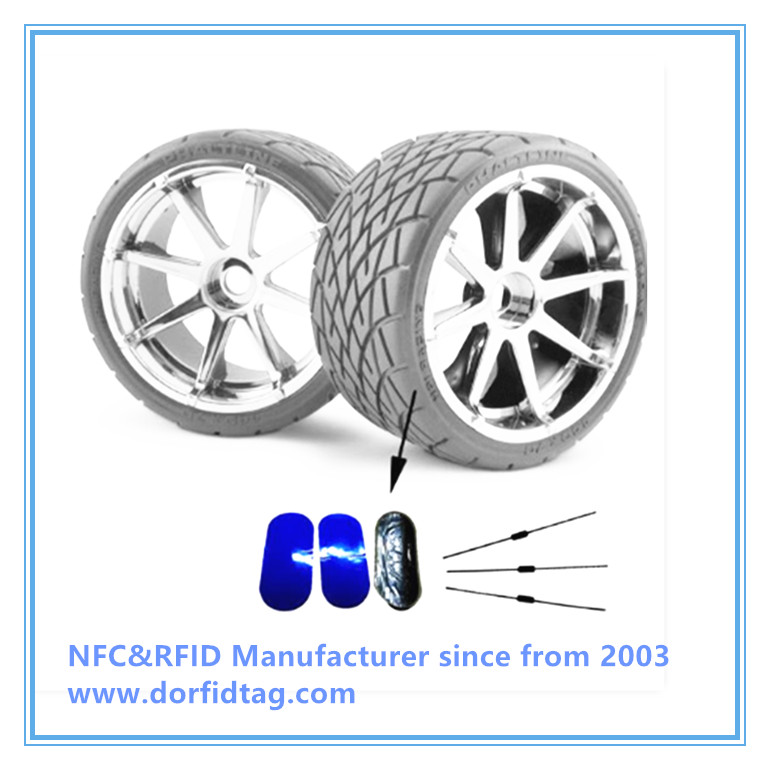

The dimensions of this initial tire ID card, something like a tire repair patch, the patch tags are said to be 105mm in length and 35mm in width. Once inserted (or patch) into a tire, the tire will have a unique identification number in the world.

UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control

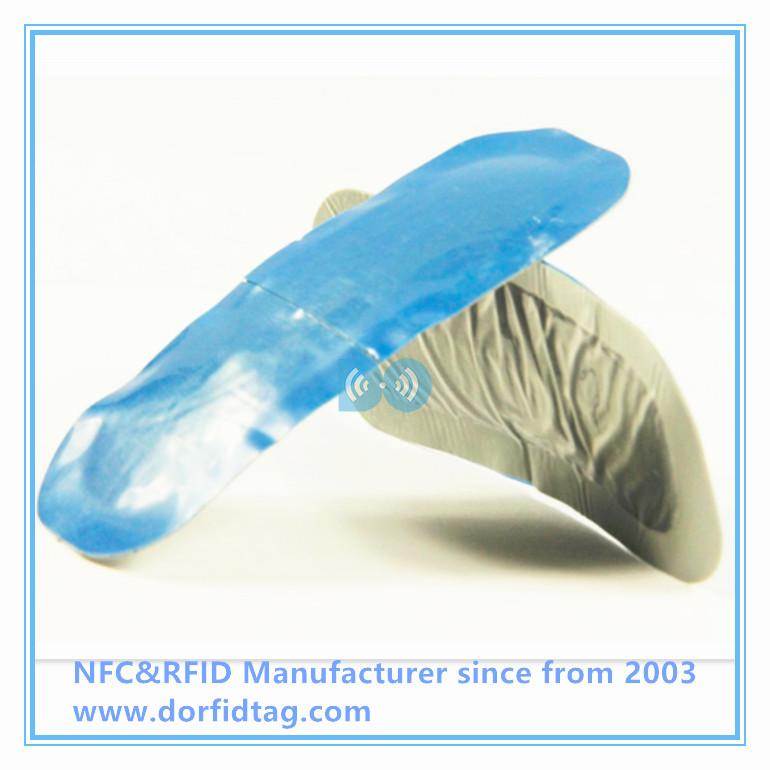

D.O RFID Tag Manufacturer developed the  are rubber based and have a flexible design to stand up to regular tire deformation and wear and tear. Tire tag installation procedures are similar to applying a heavy duty tire patch to the inside of a tire.

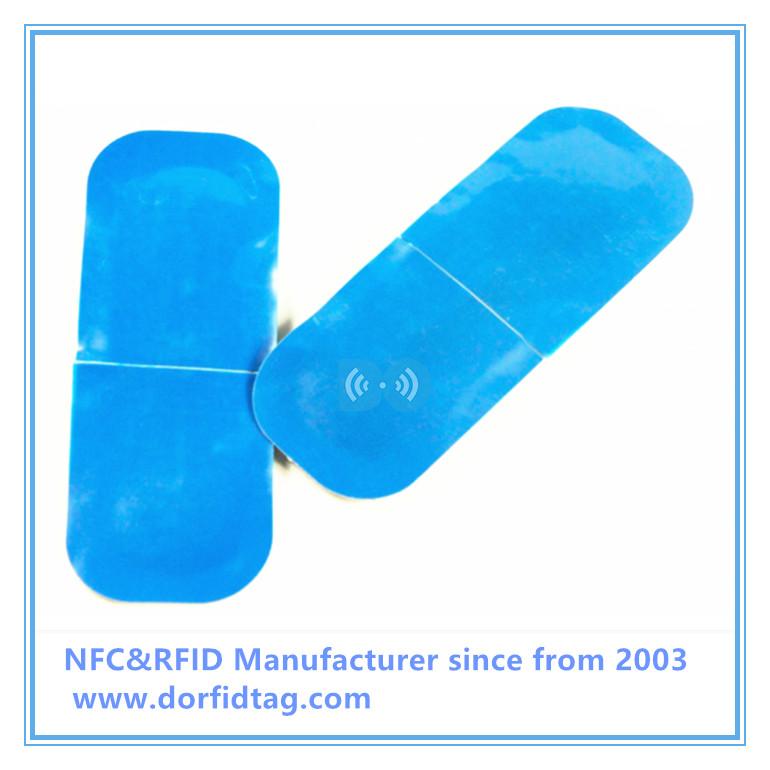

 it is a tire patch with an embedded RFID chip to be installed tires after manufacture. Each patch contains a factory programmed EPCglobal unique part number which can be tracked to prevent truck tire theft and cloning with RFID technology.



Product description:

RFID tire tags provides excellent performance when an integral part of tire retread operations, fleet management, or tire warranty/recall processes. It allows discrete long lasting RFID management and tracking of tires that don’t have RFID capabilities.

The dimensions of this initial tire ID card, something like a tire repair patch, the patch tags are said to be 105mm in length and 35mm in width. Once inserted (or patch) into a tire, the tire will have a unique identification number in the world.

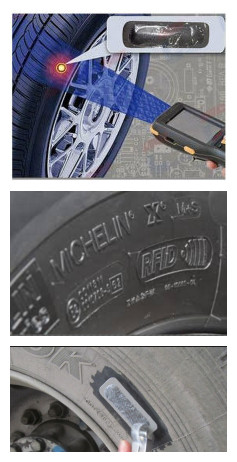

The RFID tire tag is robust can stand high crash and pressure during the tire running in the vehicle. The tire with this tag can be tracked via a handhold reading device or fixed reader. Any reader compatible with EPC G2 ISO186000-C protocol can work great with the tag. The tag has the user memory which can be written with some other information such as production time, batch, reseller, retreading etc. Any information of the tire will be recorded and store in the database for track the tire production and using record in the whole life of the tire.

Features:

the RFID tire tag is robust can stand high crash and pressure during the tire running in the vehicle. The tire with this tag can be tracked via a handhold reading device or fixed reader. Any reader compatible with EPC G2 ISO186000-C protocol can work great with the tag. The tag has the user memory which can be written with some other information such as production time, batch, reseller, retreading etc. Any information of the tire will be recorded and store in the database for track the tire production and using record in the whole life of the tire.

Technical Specification:

Model

UHF RFID Tire  Tag for Tire Tracking/Vehicle Access Control

Protocol

EPC class 1 generation 2/ISO 18000-6C

Frequency

860—960MHZ

Read distance

0-2 M

Memory

96bits EPC,512bits user memory

Read/write

Can read/write data into the tag

Unique ID

Our manufacturer programmed tag identification number is unique to prevent cloning.

Installation

mounted inner side of the tire

Dimension

110mm*55mm*3mm

Weight

8.5g





How to use the UHF tire tag ?



1.   Check the general area where the patch will stick.



2.   Cleaning the surface of the inner liner in the area where the patch will stick.



3.   Removing molded-in features such as ridges (strias) or texture (“alligator skin”)



4.   Marking the exact location where the patch will stick



5.   The distance between the patch center and the lip of the bead will be 105 – 115 mm



6.   Applying Vulcanizing Cement and allowing the solvent to dry



7.   Applying the patch to the prepared inner liner and applying pressure (“stitching it down”) to assure intimate contact.



8.   There will be no bubbles under neath the patch



9.   The patch will be tightly adhered to the tire all the way around its periphery.



10. Waiting for appropriate time and make the adhesive system vulcanization (depending on temperature).





FAQ:

1.  What about the warranty period

Two years without natural and man-made damage. We guarantee no worries for the after sale.



2. What about the delivery time?

Once we got payment or deposit, 5-7 working days for producing 1000-80000 pcs tags.



3. What about the sample testing?

Free Sample (Existing sample) for testing before client place full order.



4. what is your company ?

We are the one of the biggest manufacturer of RFID tags/NFC tags/PVC cards in China over 14 years.



We are looking for long terms cooperation access control and security systems wholesalers, resellers, importers, agents worldwide!


You may like:

Blank NFC Tags - Type 3

Blank NFC Tags - Type 2

Blank NFC Tags - Type 1

Amazon NFC Tag

NFC TAG

Type 2 NTAG213 NFC on metal tag

On metal NFC tag






UHF tire tag is  High Value Asset Labeling, Asset Marking & Tracking, Vehicle/Fleet Marking, Harsh Environments, Anti-Counterfeit
