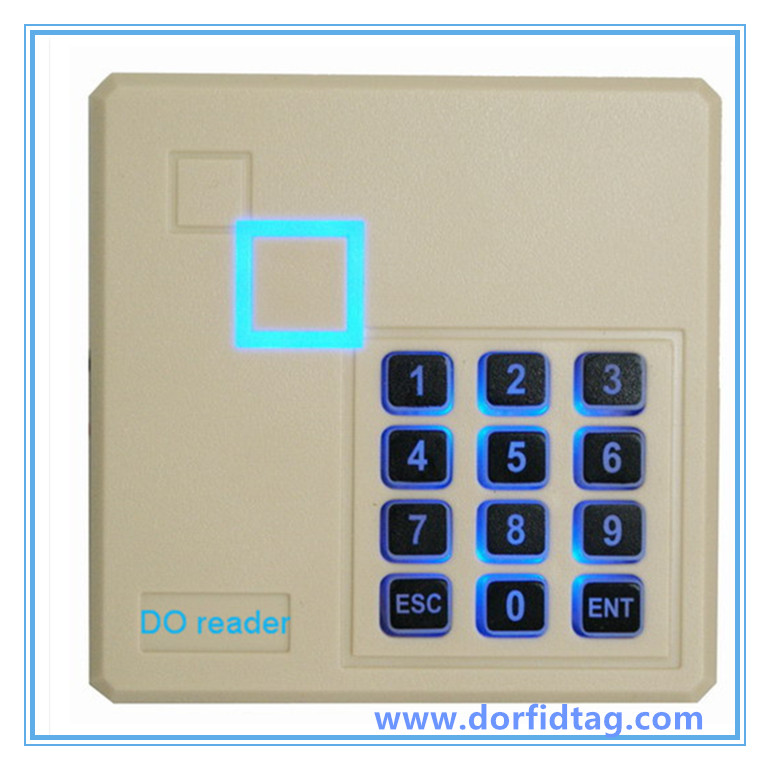

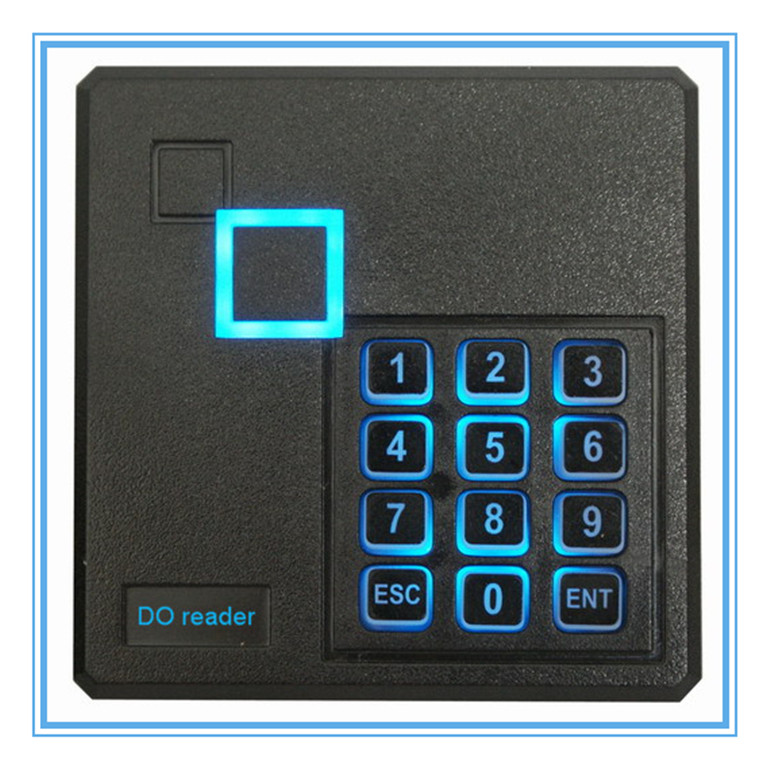

Waterproof Wiegand Output Keypad EM/Mifare classic card reader
Model No. :DO-27
Specification
*Wiegand 26bits/ Wiegand34bits Standard Format Data Output
*Less than 0.2 second Response Speed
*5-10cm Proximity Range
*Support EM-ID, M1card, 15693card, 14443A or 14443B Card
*Ambient Temperature: -25ºC to 75ºC
*Ambient Humidity: 10%-90%
*Built-in Antenna
*Built-in LED (Double Color LED)
*Built-in Loud Speaker (Buzzer)
*DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current
*90 Meters Communication Distance
*Real Time Data Transfer
*With Water-Proof Function
*Audiovisual indication: When a registered card is presented to the reader, the reLED flashes green and the beep sounds.
*86*86*18(mm)
*Package: 100PCS per carton. Carton Size: 43.5*56*23(cm)
