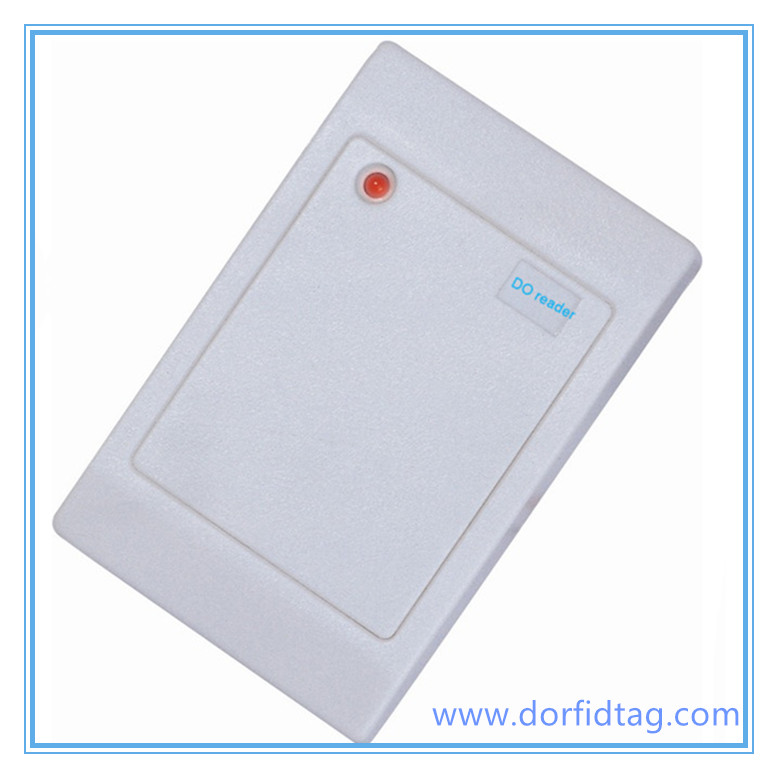

125khz RFID reader for access control on the wall Wiegand RFID reader

Model No. :DO-05

Specification:

Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output

Less than 0.2 second Response Speed

Less than 0.5 seconds Proximity Time Distance:

2-15cm Proximity Range

Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)

-25º C to 75º C Ambient Temperature, 10%-90% Ambient Humidity

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 12V Working Voltage, 70mA Working Current

100 Meters Communication Distance

Real Time Data Transfer

Black Color

PVC Case Material (Black Resin for Water-Proof Function)

124mm*76mm*23.5mm

Installation :

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 5V-16V

Black GND

Blue D1

White D0

Brown BEEP

Green LED

Yellow Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
