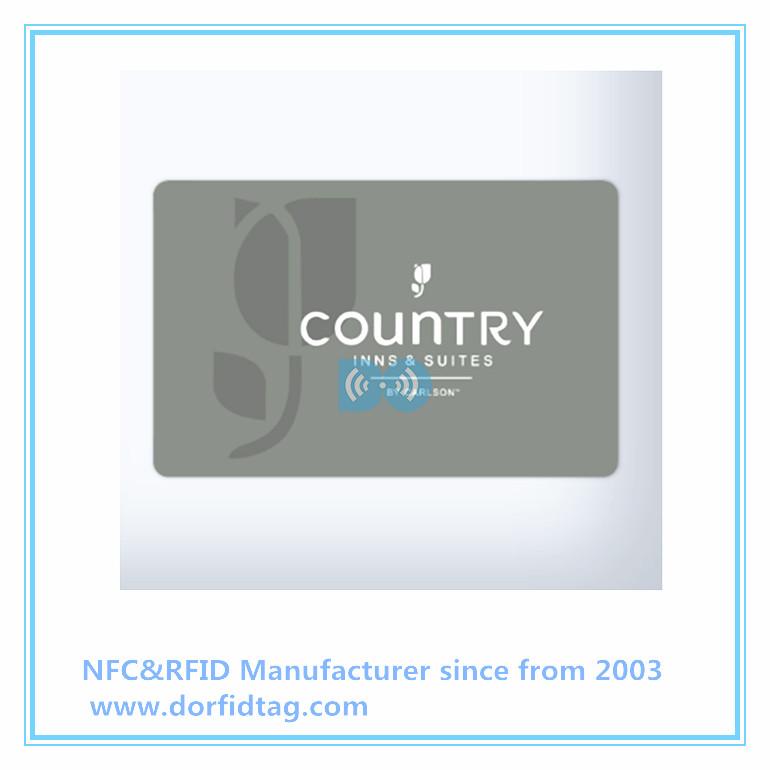

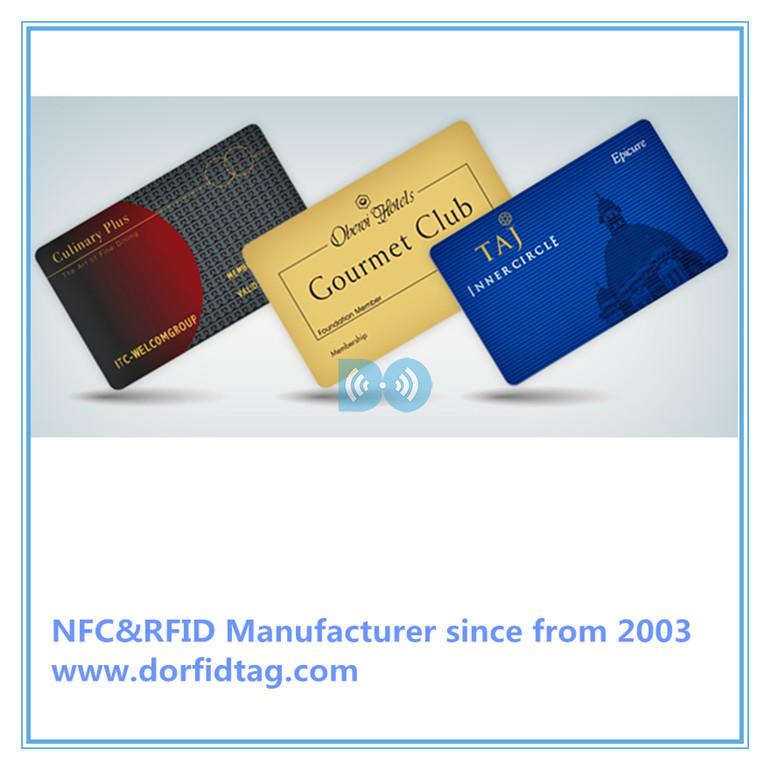

MIFARE Classic 1K (MF1 S50) Contactless Smart card

MIFARE™ Classic 1K (MF1 S50) Contactless Smart card

NXP has developed the MIFARE MF1ICS50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.

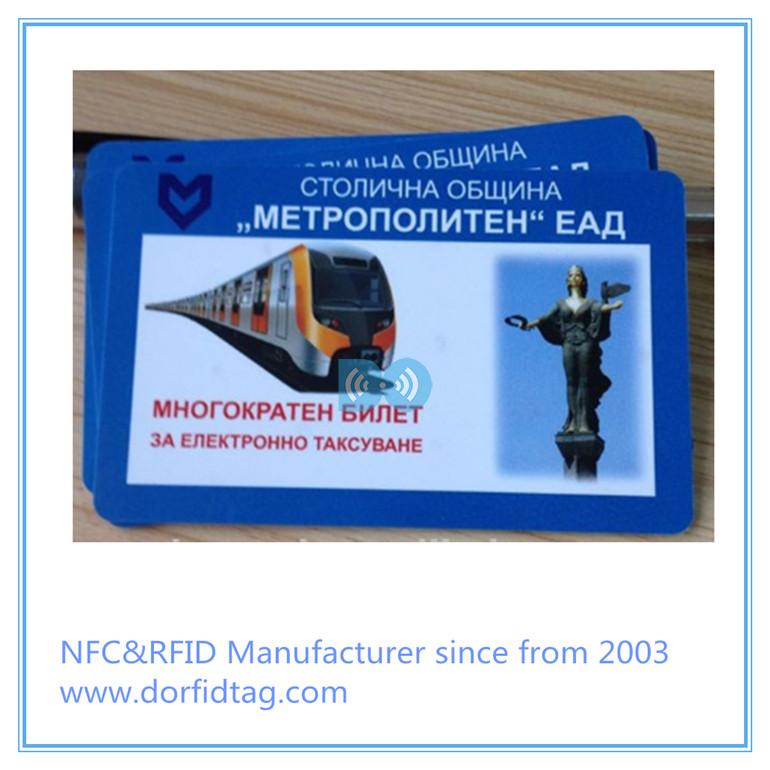

The MIFARE MF1ICS50 IC is used in applications like public transport ticketing where major cities have adopted MIFARE as their e-ticketing solution of choice.

MIFARE , RF Interface(ISO/IEC 14443 A)

*Contactless transmission of data and supply energy (no battery needed)

*Operating distance: Up to 100mm (depending on antenna geometry)

*Operating frequency: 13.56MHz

*Data transfer: 106 kbit/s

*Data integrity: 16 Bit CRC,parity,bit coding bit counting

*Anticollision

*Typical tickting transaction: <100 ms ( including backup management)

EEPROM

*1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each ( one block consists of 16 byte)

*User definable access conditions for each memory block

*Data retention of 10 years.

*Write endurance 100 000 cycles

Security

*Mutual three pass authentication( ISO/IEC DIS 9798-2)

*Individual set of two keys per sector (per application) to support multi-application with key hierarchy

*Unique serial number for each device

Key features

&bull;Dimensions: 86 x 54mm

&bull;Thickness: 0.84mm

&bull;Material: PVC, PET

&bull;Surface: lamination (gloss/matt/frosted)

&bull;Data storage time: minimum 10 years

&bull;Operating temperature: -20 to +60&deg;C

&bull;Stockage temperature: -20 to +65&deg;C

Printing options

&bull;Full color offset printing

&bull;Silk-screen printing

&bull;Silver/Gold silk-screen printing background

&bull;Personalization

Other Crafts Options for MIFARE&trade; Classic 1K (MF1 S50) Contactless Smart Card

&bull;Magnetic stripe: 300oe, 2750oe, 4000oe

&bull;Numbering

&bull;Barcode printing

&bull;Signature panel

&bull;Embossing

&bull;Encoding (according agreement)
